Evaluates an MCP tool from the agent's perspective — discovers findings, generates patches, tracks regressions against author baselines

Open the interactive explorer → View on GitHub

built evolving planned research risk

The whole picture

System landscape

The system in context, then opened up into its containers.

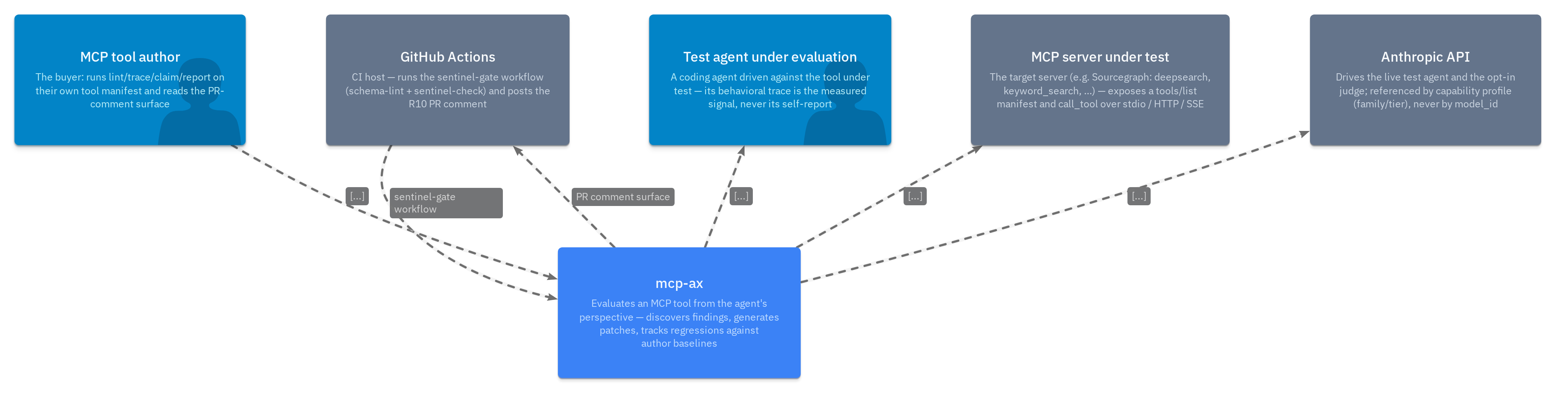

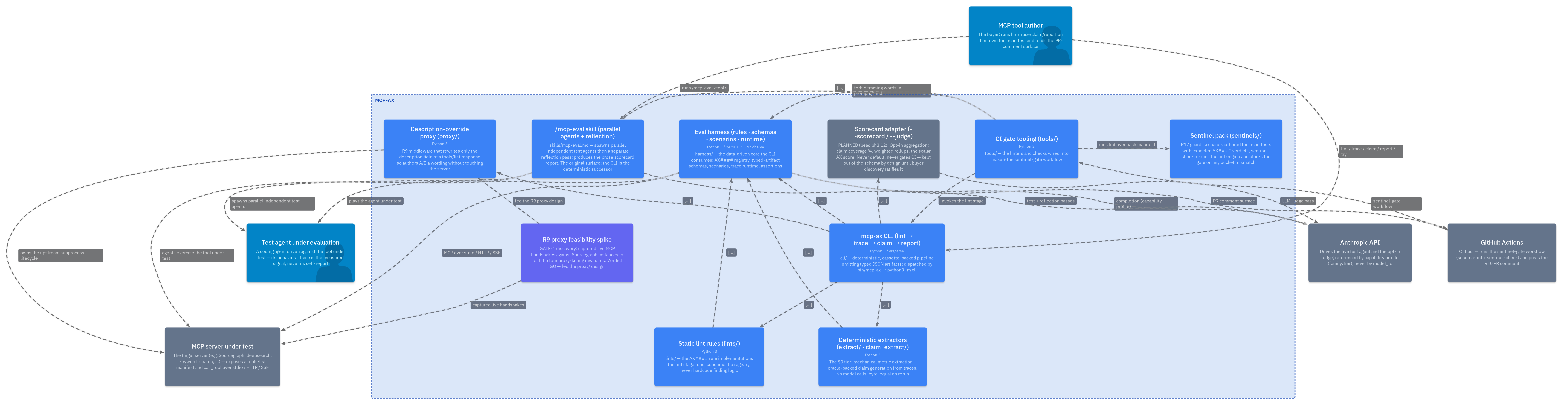

mcp-ax — system landscape — mcp-ax — system landscape
index

mcp-ax — containers (built vs planned) — mcp-ax — containers (built vs planned)
mcpaxSystem

Evaluates an MCP tool from the agent's perspective — discovers findings, generates patches, tracks regressions against author baselines

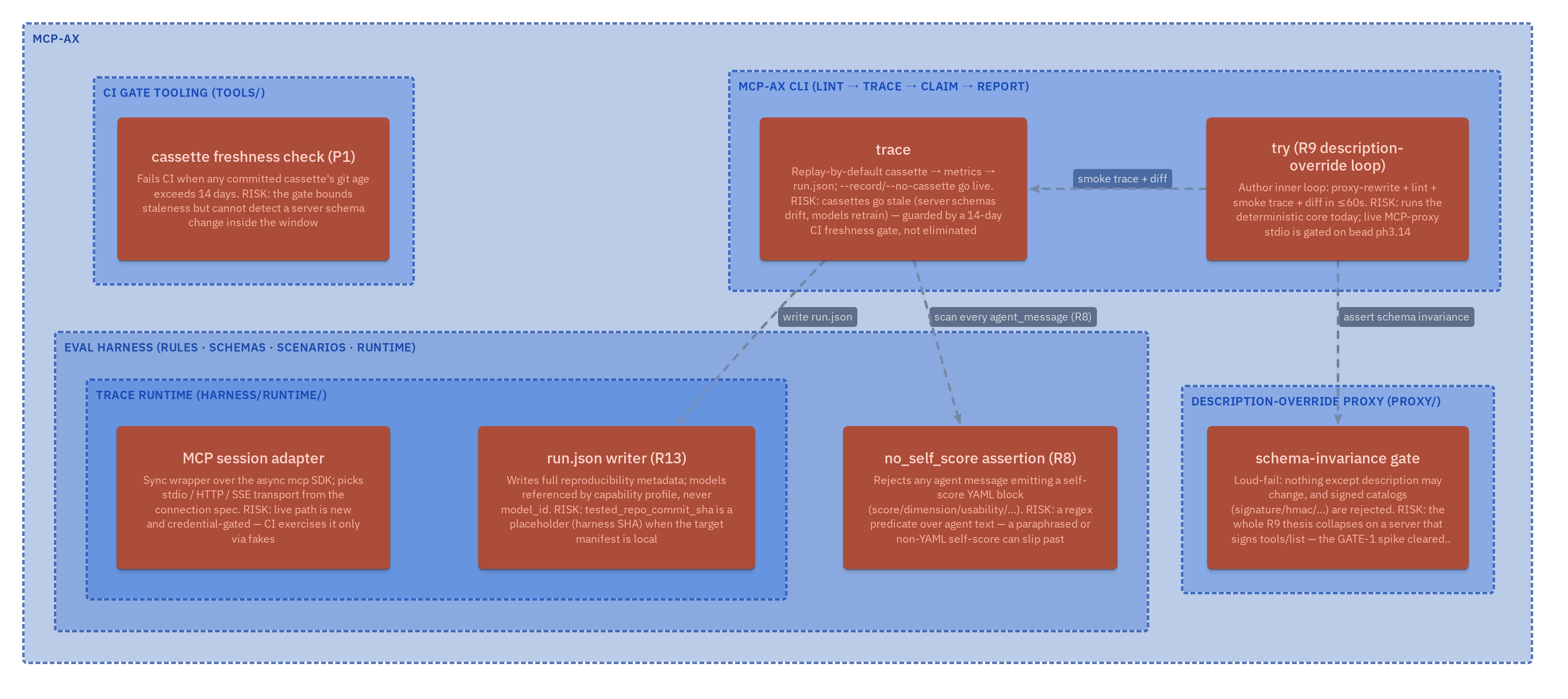

Risks & open questions — Risks & open questions
risks

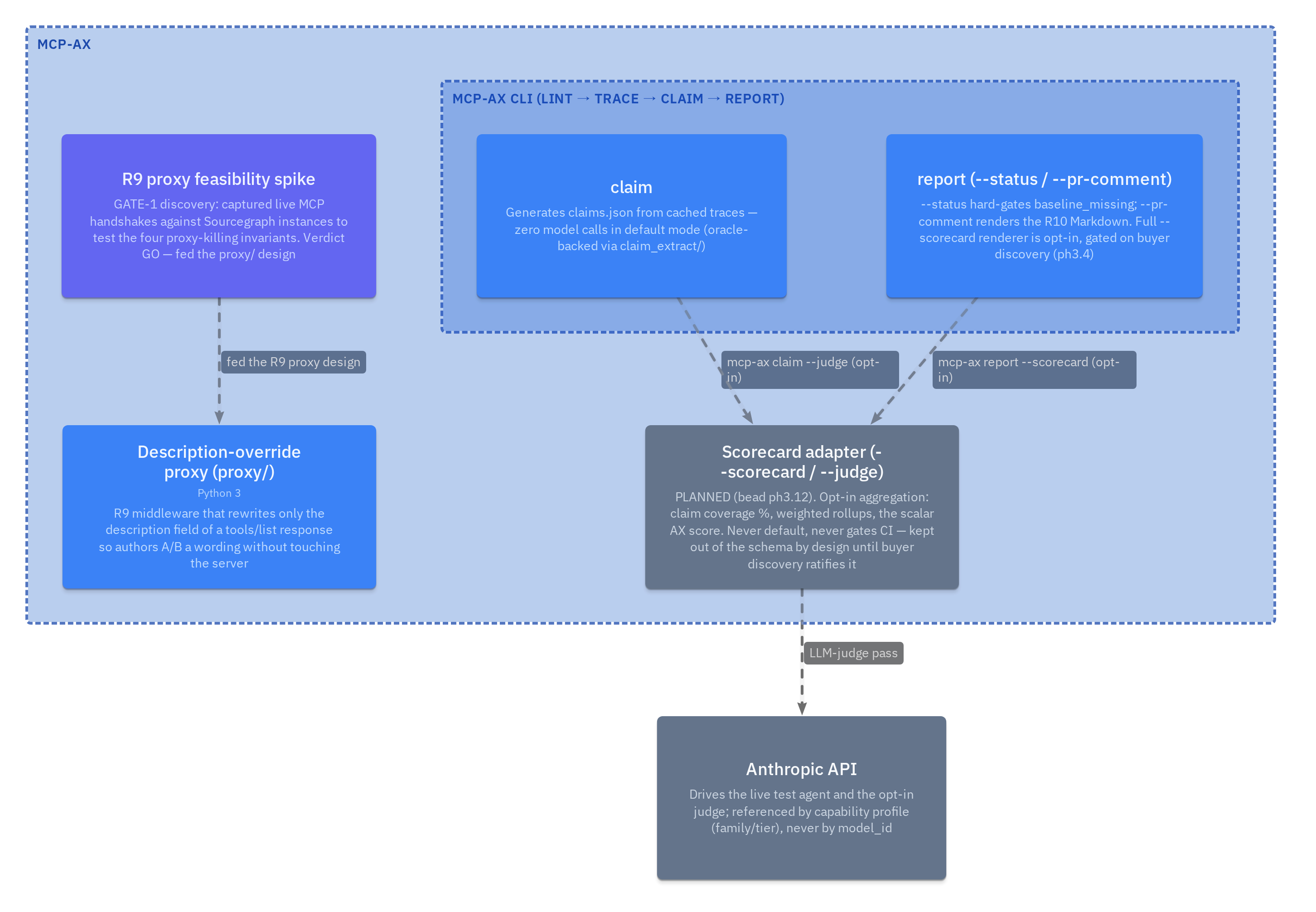

Planned & research work — Planned & research work
planned

Inside each box

Containers & components

Each part decomposed into the components that implement it. Every box links to its source in the interactive explorer.

mcp-ax CLI (cli/) — pipeline stages — mcp-ax CLI (cli/) — pipeline stages
cliContainer

cli/ — deterministic, cassette-backed pipeline emitting typed JSON artifacts; dispatched by bin/mcp-ax → python3 -m cli

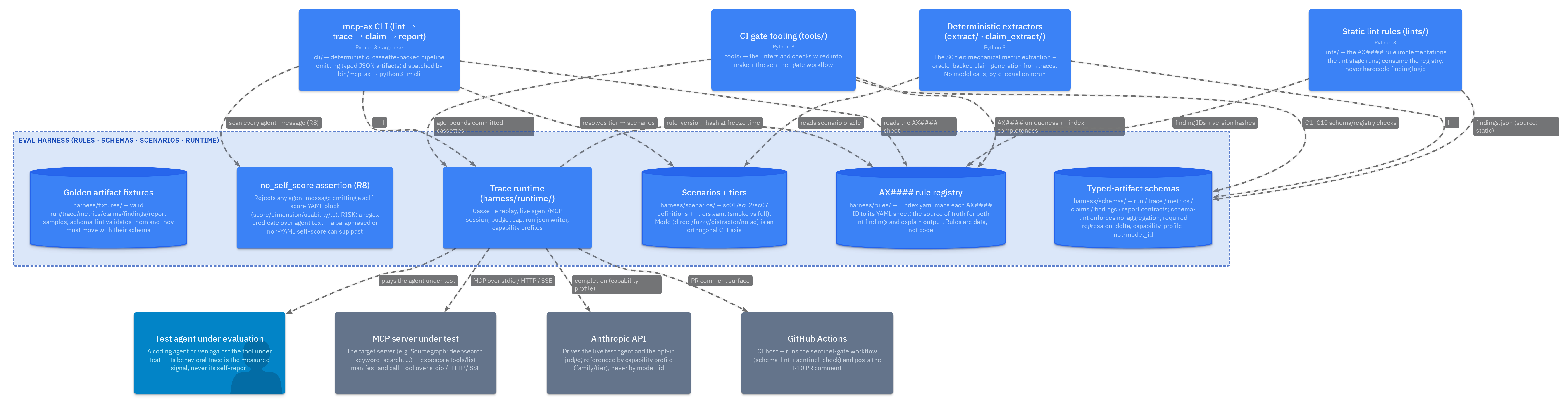

Eval harness (harness/) — components — Eval harness (harness/) — components
harnessContainer

harness/ — the data-driven core the CLI consumes: AX#### registry, typed-artifact schemas, scenarios, trace runtime, assertions

Trace runtime (harness/runtime/) — replay & live recorder — Trace runtime (harness/runtime/) — replay & live recorder
runtimeContainer

Cassette replay, live agent/MCP session, budget cap, run.json writer, capability profiles

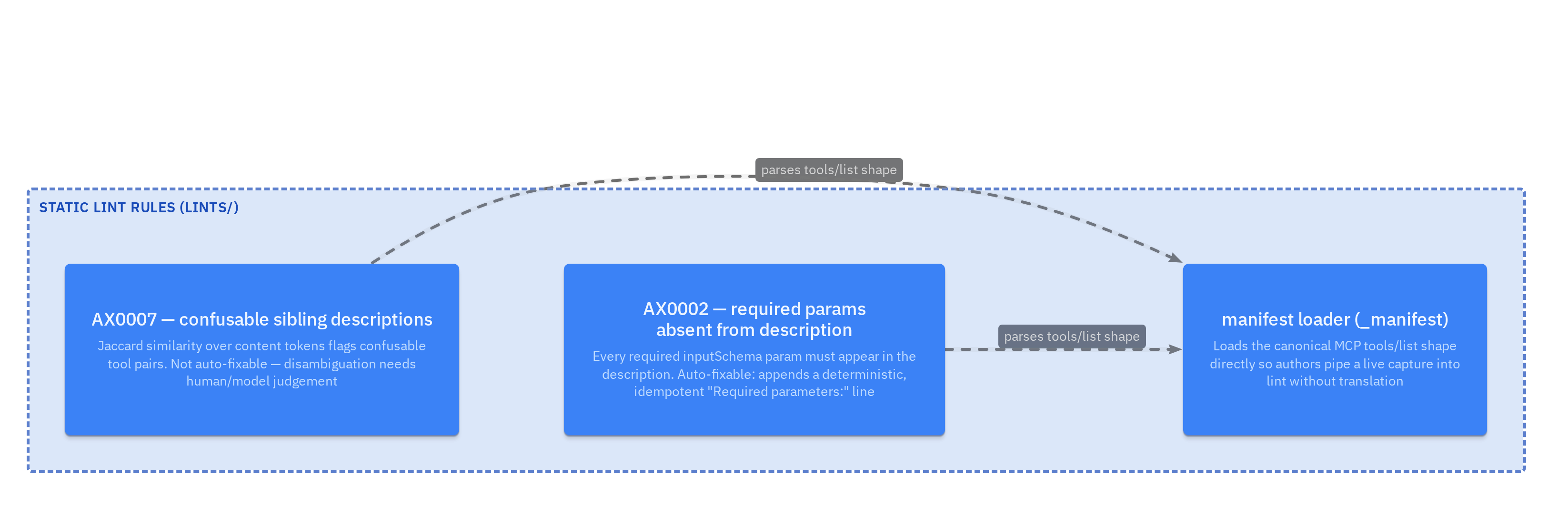

Static lint rules (lints/) — AX#### implementations — Static lint rules (lints/) — AX#### implementations
lintsContainer

lints/ — the AX#### rule implementations the lint stage runs; consume the registry, never hardcode finding logic

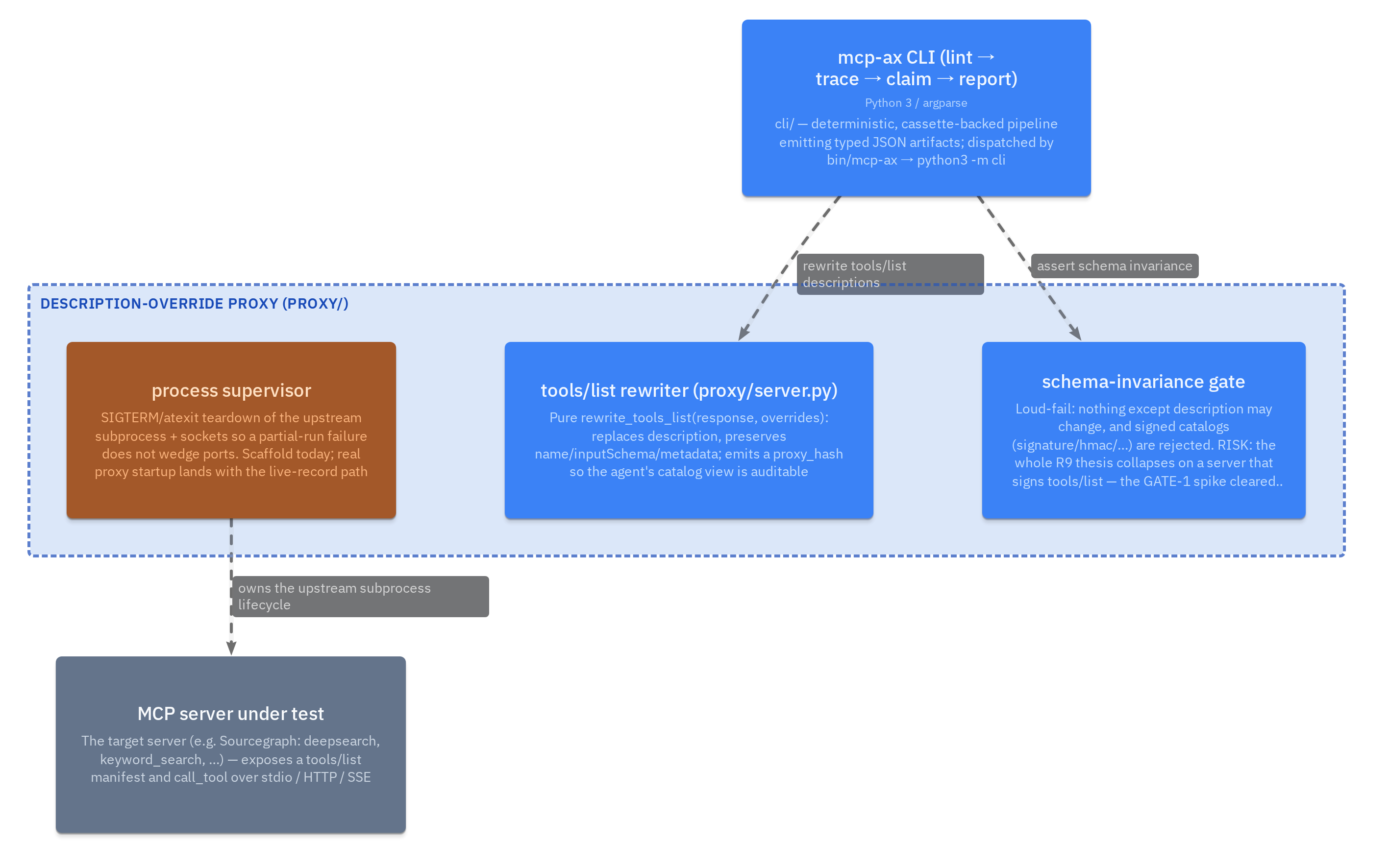

Description-override proxy (proxy/) — R9 components — Description-override proxy (proxy/) — R9 components
proxyContainer

R9 middleware that rewrites only the description field of a tools/list response so authors A/B a wording without touching the server

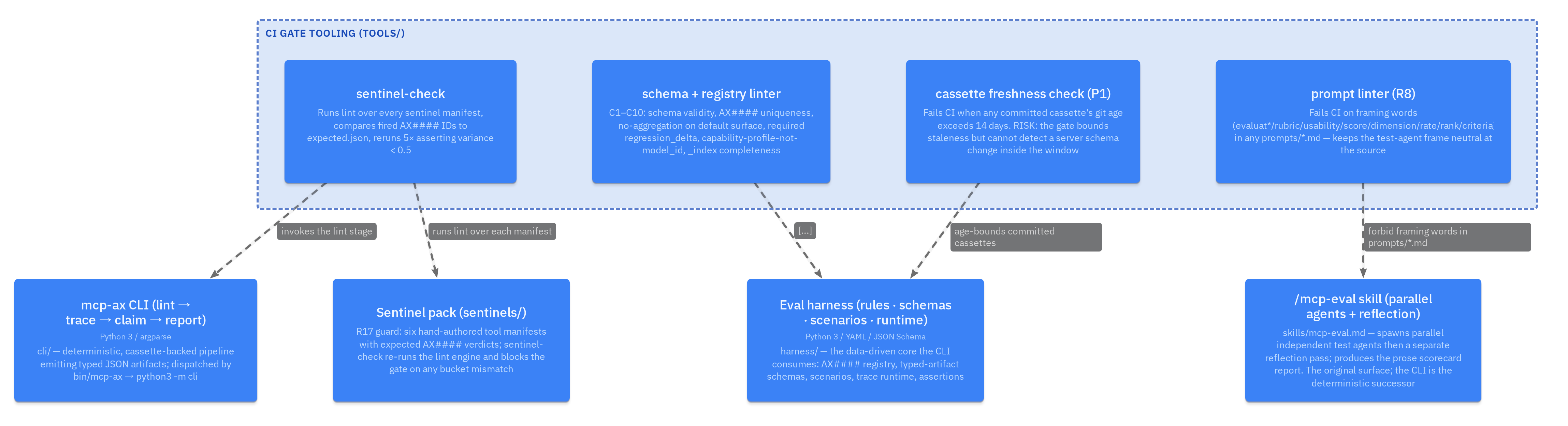

CI gate tooling (tools/) — sentinel + schema + prompt + freshness — CI gate tooling (tools/) — sentinel + schema + prompt + freshness
ciContainer

tools/ — the linters and checks wired into make + the sentinel-gate workflow

How it runs

Walkthrough flows

Dynamic views — the narrative spine of the system, step by step.

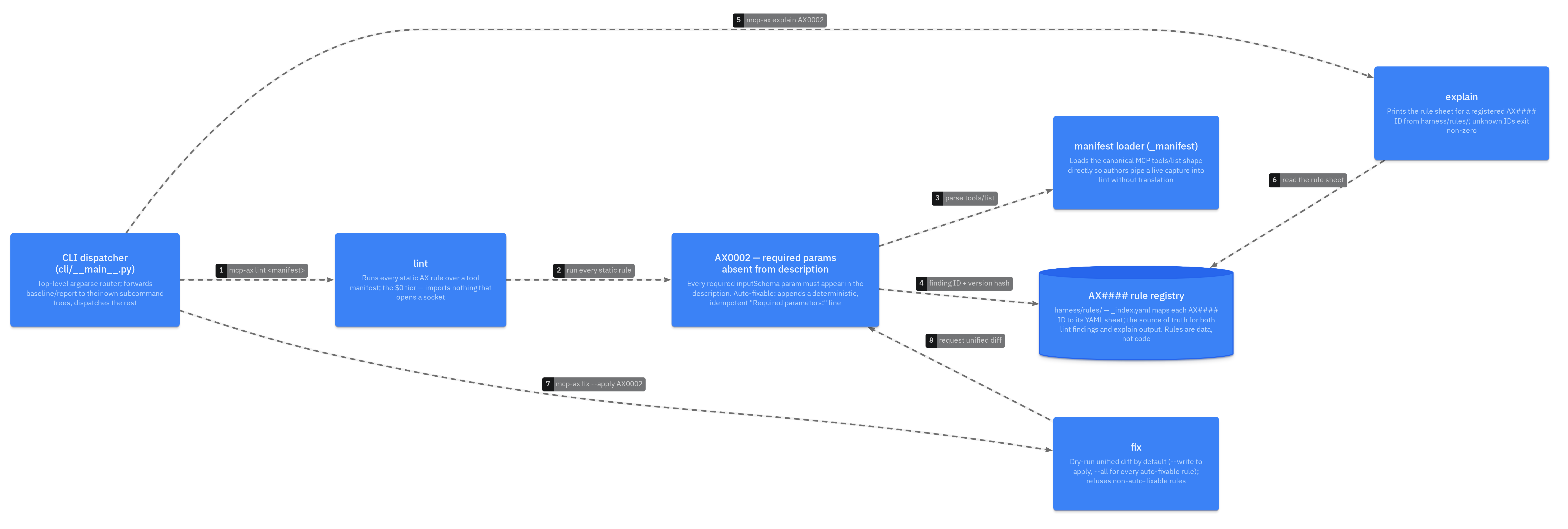

Walkthrough — static lint → explain → fix loop — Walkthrough — static lint → explain → fix loop
lintFix

The $0 tier: no model, no network. Lint a tools/list manifest, explain any AX#### that fires, and emit an idempotent auto-fix diff (dry-run by default).

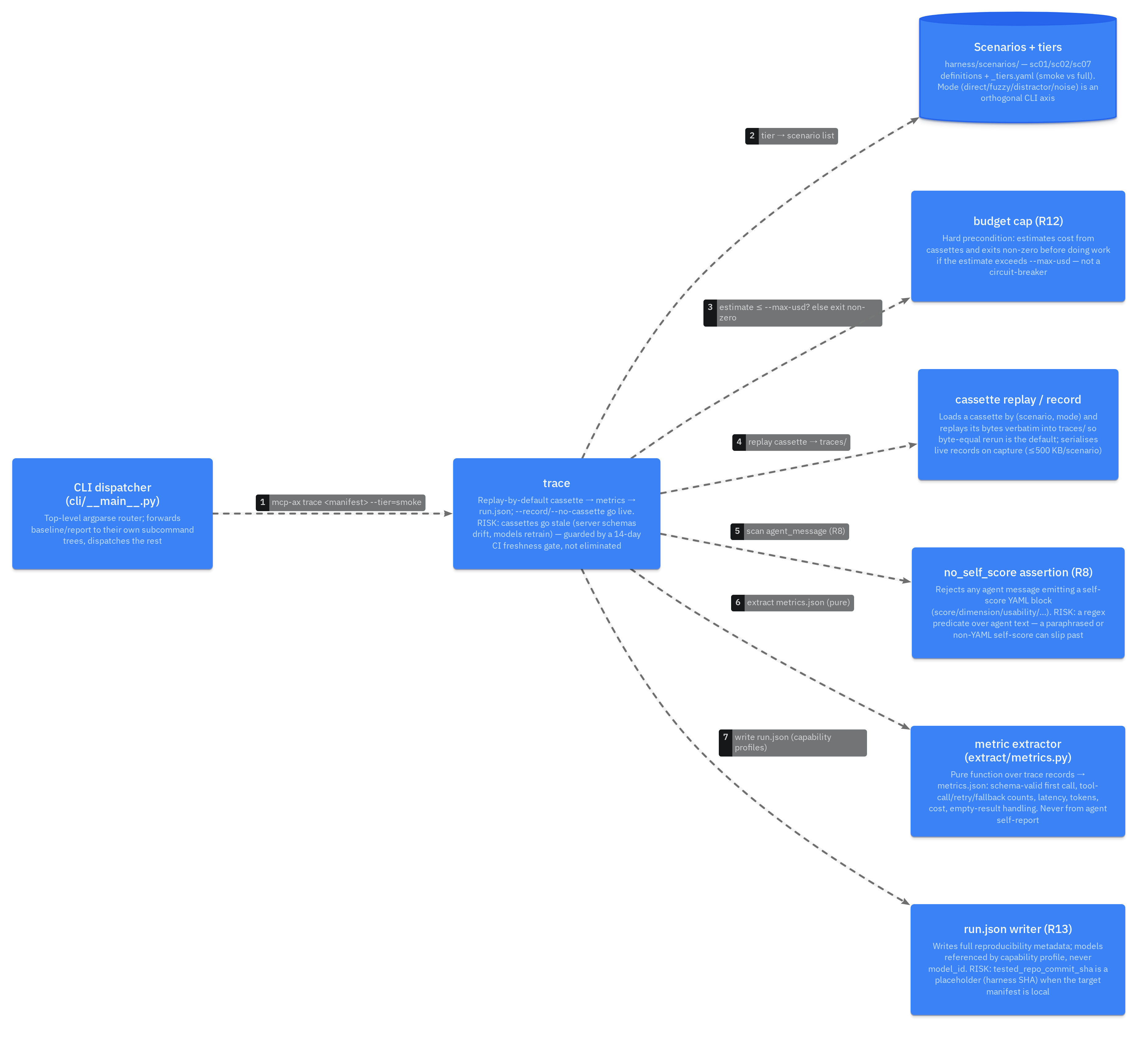

Walkthrough — a trace run (replay by default) — Walkthrough — a trace run (replay by default)
traceRun

Budget is a hard precondition checked before any work. Cassettes replay byte-for-byte; --record/--no-cassette go live through the recorder. Every agent message is scanned for self-scoring (R8).

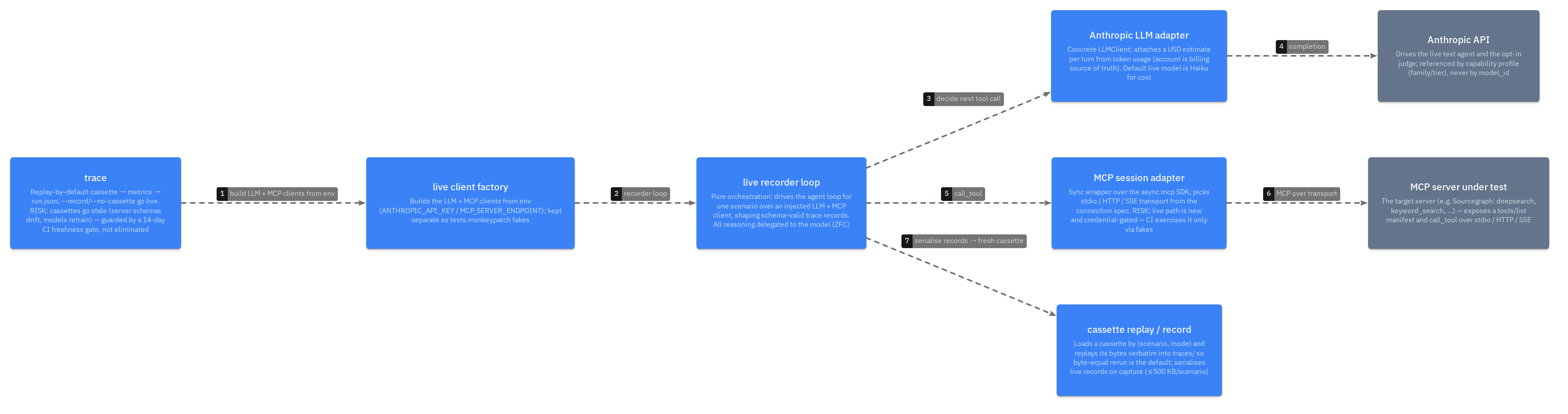

Walkthrough — live recording (--record) — Walkthrough — live recording (--record)
liveRecord

EVOLVING. The recorder drives the agent loop over a real LLM + MCP session, shapes schema-valid trace records, enforces the budget the moment cost crosses the cap, and writes a fresh cassette. All reasoning is the model's (ZFC).

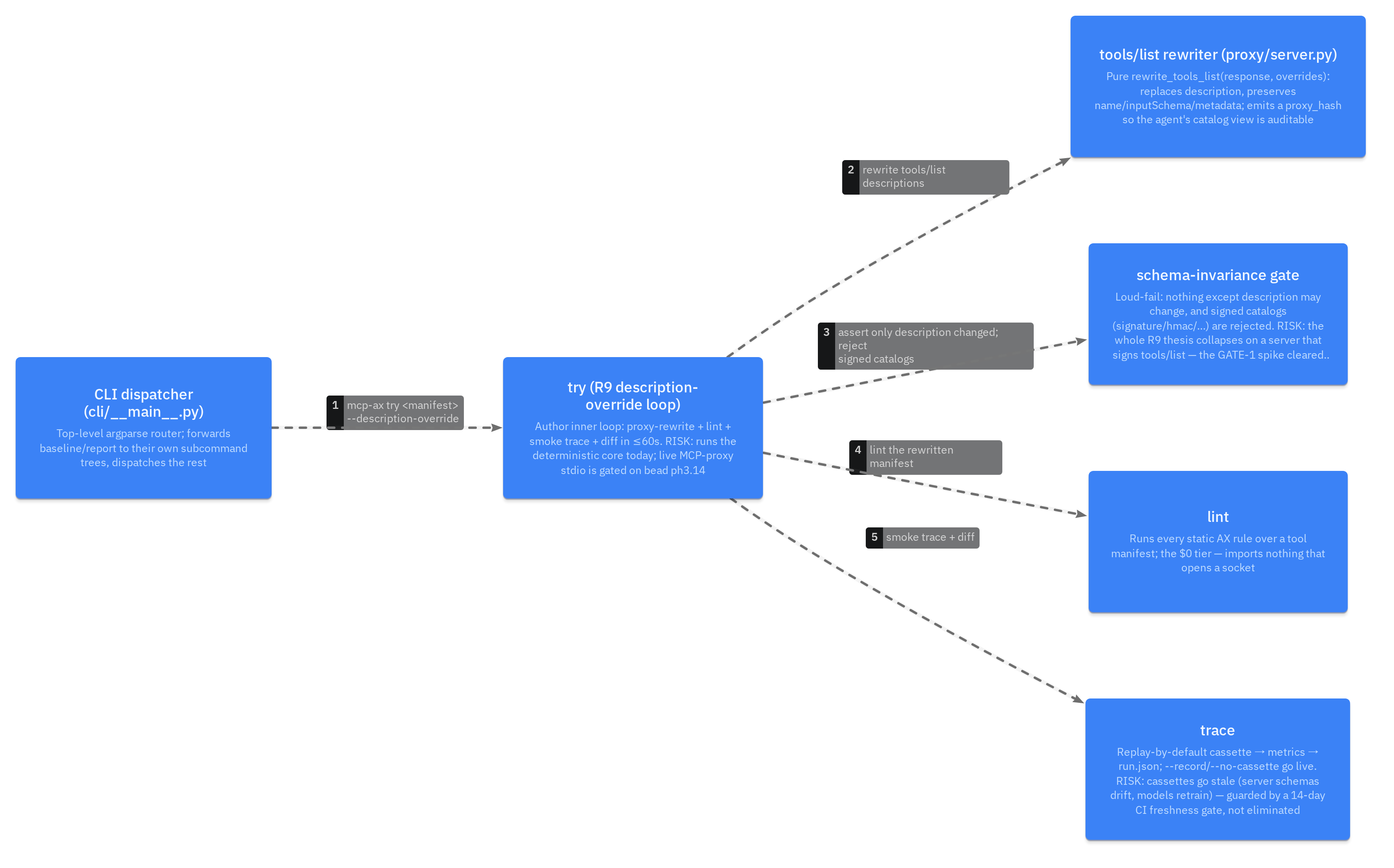

Walkthrough — R9 description-override try cycle — Walkthrough — R9 description-override try cycle
tryCycle

The author inner loop (≤60s, ≤$0.10): rewrite only the description, prove nothing else changed, then lint + smoke-trace the rewritten catalog and diff. Live proxy stdio is gated on ph3.14; the deterministic core runs today.

Where it runs

Deployment

What runs where, and the process & data boundaries between the pieces.

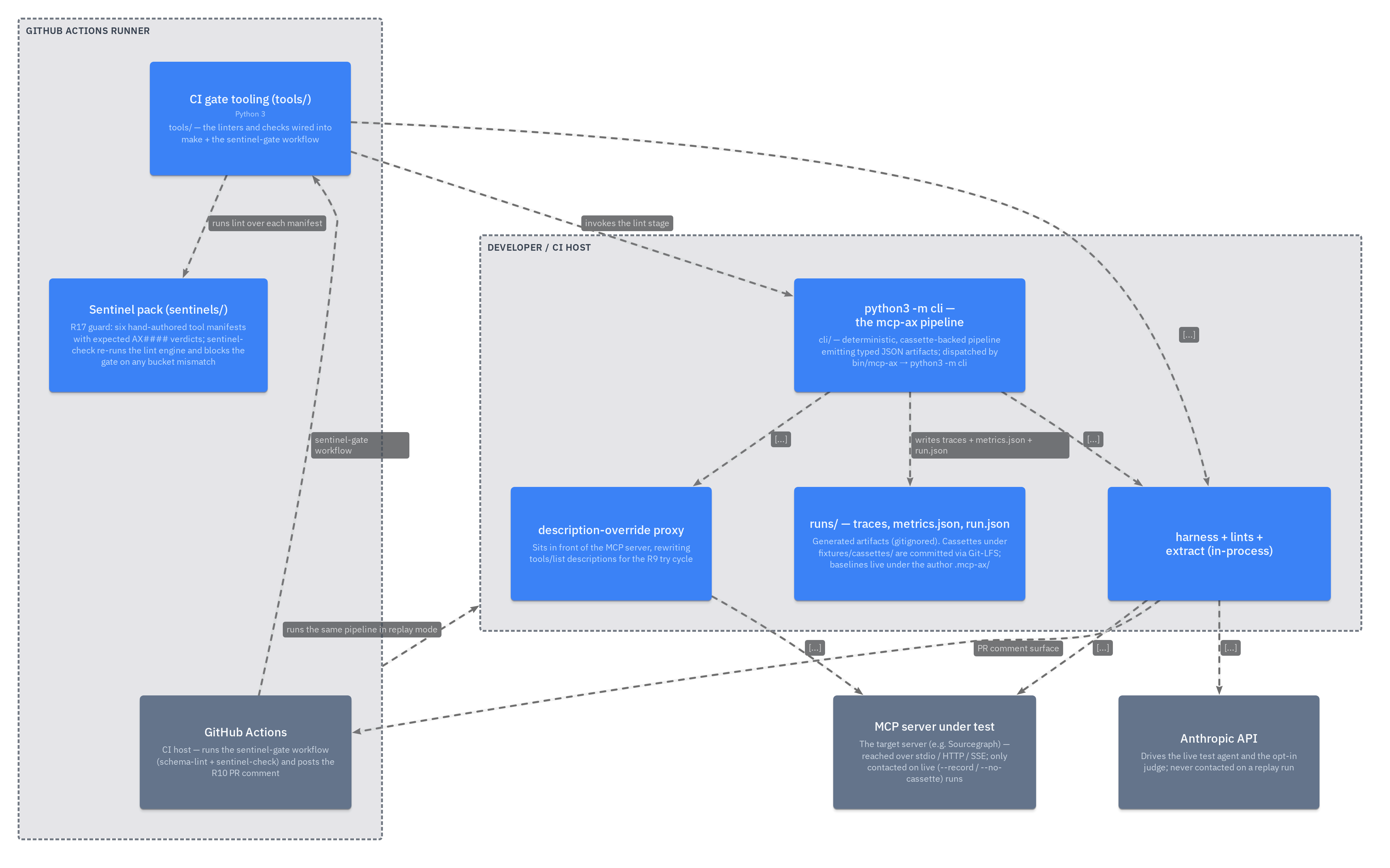

Deployment — where each piece runs — Deployment — where each piece runs
deployment
